Connect

Connects an existing inbound or outbound call (primary call) to a new call destination (secondary call). More than one possible destination can be specified, but only one secondary call ends up being connected. This is typically the first call to be answered.

language wrappers and examples

Note that web apps that use the connect action require sufficient Extra Channels to be set in the service configuration for the number of destinations specified.

The connect properties are:

Property	Required/Optional	Default	Description
destinations	required		An array of strings each specifying a destination, such as a telephone number, sip address, inbound service address, WebRTC client Id or websocket address. The first to answer is connected. The rest are hung up. An optional prefix may be supplied to declare a specific type of number/address, see Outbound Calls.
call from	optional	a number or address that identifies the primary call	A telephone number or sip address that identifies who is calling. If destinations contains one or more telephone numbers then you may need to supply a validated caller id here. See Caller IDs.
hold media	optional	-	A play action. Media to play repeatedly to the primary call until the secondary call is connected or, if pass early media is true, early media is available. null signifies playing ringing to the call.
pass early media	optional	false	true or false. Whether to pass early media from the secondary call to the primary call. Passing early media requires that only one destination is given, and that the secondary call does not have a first page specified.
seconds answer timeout	optional	30	An integer. The time to wait for the secondary call to be answered.
classify callee	optional	-	A classify callee object that determines whether and how to classify the far end of the secondary call. null signifies that classification is disabled.
secondary call	optional	-	A secondary call object that specifies pages and properties that are related to the lifetime of the secondary call.
translator from API V2.0	optional	-	A translator object that specifies an AI translator to be added to the connection. Both connected calls will hear the translator as well as each other. null signifies that a translator is not added to the connection.
extra_sip_headers from API V2.0	optional	-	A list of SIP header objects. These represent additional headers to include in the requests to initiate the outbound calls.
next page	optional	-	A web page request object that defines the web page to be requested once the connect has finished. If null or no page is specified or the secondary call fails to connect then the subsequent action in the action array will be executed.

Returns

The result of a successful connect action will be returned via the subsequent http request to the next page in action result as follows:

Property	Availability	Description
seconds connected duration	always	A floating point value to one decimal place. The duration for which the two calls were connected.

Remarks

The connect action makes outbound (secondary) calls to all specified destinations. As soon as one is answered either it is immediately connected to the primary call or, if a secondary call first page is specified, the answered call's details are sent to it. Meanwile the other call attempts are dropped.

If classification with hang up on answering machine is enabled, destinations that are classified as "answering_machine" will also be dropped and listed in the dropped calls array sent to the secondary call final page. Similarly, if classification with hang up on fax machine is enabled, destinations that are classified as "fax_machine" will also be dropped.

Setting the first page property allows the application to interact with the secondary call before it is connected as illustrated in the following diagram:

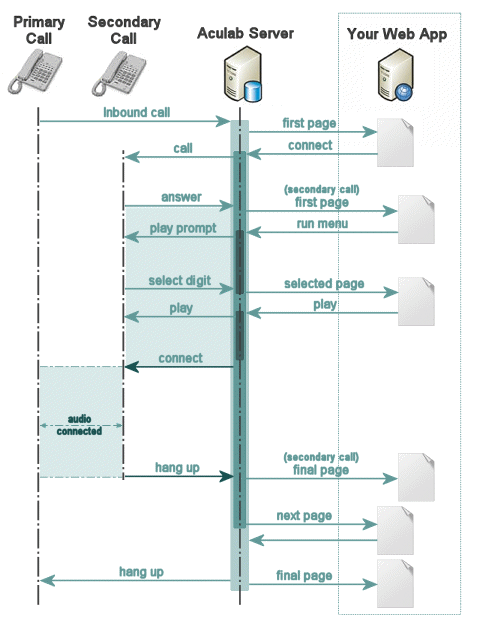

In this example a first page is specified that responds with a run menu action. The selected option's page then returns a further play action. Once this has completed the primary and secondary calls are connected.

When the secondary call goes idle its final page is requested. The this call property in the request contains details of the secondary call. Note: if the primary call hangs up, the secondary call is automatically hung up.

Subsequently the connect's next page is requested. The action result contains details of the connect. Note: If no next page is defined then the application continues with the next action in the action array.

If interaction with any of the secondary call's pages fails then a request is made to the secondary call's error page with a description of the issues.

See also:

Simple Connect

JSONC#VBJavaPythonPHP

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

"connect" :
{
    "destinations" : [ "443069990123" ],
    "call_from" : "443069999876",
    "next_page" :
    {
        "url" : "connectNextPage"
    }
}

Once the connect action has finished the duration for which the two calls were connected is specified in the request to the next page:

"action_result" :
{
    "action" : "connect",
    "result" :
    {
        "seconds_connected_duration" : "47.3"
    }
}

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

"connect" :
{
    "destinations" : [ "443069990123", "443069990124" ],
    "call_from" : "443069999876",
    "hold_media" : { "play" : { "play_list" : [ { "file_to_play" : "welcome.wav" } ] } },
    "seconds_answer_timeout" : 20,
    "secondary_call" :
    {
        "call_recording" : true,
        "minutes_max_call_duration" : 60
    },
    "classify_callee" :
    {
        "milliseconds_timeout" : 3000,
        "hang_up_on_answering_machine" : false,
        "hang_up_on_fax_machine" : true,
        "answering_machine_ready_to_record" :
        {
            "milliseconds_min_beep_duration" : 180,
            "milliseconds_post_beep_silence" : 1000,
            "milliseconds_no_beep_silence" : 4000,
            "seconds_max_message_duration" : 10
        }
    },
    "next_page" :
    {
        "url" : "connectNextPage"
    }
}

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

"connect" :
{
    "destinations" : [ "443069990123", "443069990124" ],
    "call_from" : "443069999876",
    "hold_media" : { "play" : { "play_list" : [ { "file_to_play" : "welcome.wav" } ] } },
    "seconds_answer_timeout" : 20,
    "secondary_call" :
    {
        "call_recording" : true,
        "minutes_max_call_duration" : 60,
        "first_page" : {
            "url" : "connectFirstPage"
        },
        "final_page" : {
            "url" : "connectFinalPage"
        },
        "error_page" : {
            "url" : "connectErrorPage"
        }
    },
    "next_page" :
    {
        "url" : "connectNextPage"
    }
}

Make a call, passing any early media from the secondary call to the primary call:

"connect" :
{
    "destinations" : [ "443069990123" ],
    "call_from" : "443069999876",
    "pass_early_media" : true,
    "secondary_call" :
    {
        "call_recording" : true,
        "minutes_max_call_duration" : 60,
        "final_page" : {
            "url" : "connectFinalPage"
        },
        "error_page" : {
            "url" : "connectErrorPage"
        }
    },
    "next_page" :
    {
        "url" : "connectNextPage"
    }
}

Make a call with a translator:

"connect" :
{
    "destinations" : [ "443069990123" ],
    "call_from" : "443069999876",
    "translator" :
    {
        "primary" : {
            "speech_recognition_options" : {
                "language" : "en-GB",
                "speech_model_options" : {
                    "model" : "latest_long"
                }
            },
            "tts_voice" : "French France Female Polly Lea"
        },
        "secondary" : {
            "speech_recognition_options" : {
                "language" : "fr-FR",
                "speech_model_options" : {
                    "model" : "phone_call",
                    "enhanced" : true
                }
            },
            "tts_voice" : "English UK Female Polly Amy"
        },
        "transcription_results_page" : {
            "url" : "transcriptionResultsPage"
        },
        "id" : "1234"
    },
    "next_page" :
    {
        "url" : "connectNextPage"
    }
}

Make a call with extra SIP headers:

"connect" :
{
    "destinations" : [ "sip:agent@acompany.com" ],
    "call_from" : "443069999876",
    "extra_sip_headers" : [
        {
            "name" : "X-CallerAccountInfo",
            "value" : "abc-123456789"
        },
        {
            "name" : "X-CallReason",
            "value" : "new loan request"
        }
    ],
    "next_page" :
    {
        "url" : "connectNextPage"
    }
}

Connect Class

Namespace: Aculab.Cloud.RestAPIWrapper

Assembly: Aculab.Cloud.RestAPIWrapper.dll

An action to connect an existing inbound or outbound (primary) call to a new (secondary) call destination.

.Net Framework.Net Standard.Net Core

public class Connect : TelephonyAction
{
    // Constructors
    public Connect(string destination);

    // Members
    public void AddDestination(string destination);
    public string CallFrom;
    public Play HoldMedia;
    public bool PassEarlyMedia;
    public int SecondsAnswerTimeout;
    public void EnableCalleeClassification();
    public void EnableCalleeClassification(ClassifyCallee classifyCallee);
    public SecondaryCall SecondaryCall;
    public Translator Translator;
    public void AddExtraSIPHeader(SIPHeader header);
    public WebPageRequest NextPage;
}

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};
actions.Add(connectAction);

Once the connect action has finished the duration for which the two calls were connected is specified in the request to the next page:

// Unpack the request
var telephonyRequest = new TelephonyRequest(Request);

var connectResult = (ConnectResult)telephonyRequest.InstanceInfo.ActionResult;
double connectedDuration = connectResult.SecondsConnectedDuration;

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    HoldMedia = Play.PlayFile("welcome.wav"),
    SecondsAnswerTimeout = 20,
    SecondaryCall = new SecondaryCall(null, 60, true),
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

var classifyCallee = new ClassifyCallee(3000, false);
classifyCallee.ConfigureAnsweringMachineReadyToRecord(new AnsweringMachineReadyToRecord(180, 1000, 4000, 10));
connectAction.EnableCalleeClassification(classifyCallee);

connectAction.AddDestination("443069990124");

actions.Add(connectAction);

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    HoldMedia = Play.PlayFile("welcome.wav"),
    SecondsAnswerTimeout = 20,

    SecondaryCall = new SecondaryCall(new WebPageRequest("ConnectFirstPage.aspx"), 60, true)
    {
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    }
};
connectAction.AddDestination("443069990124");

actions.Add(connectAction);

Make a call, passing any early media from the secondary call to the primary call:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    PassEarlyMedia = true,
    SecondaryCall = new SecondaryCall()
    {
        CallRecording = true,
        MinutesMaxCallDuration = 60,
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    },
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

actions.Add(connectAction);

Make a call with a translator:

List<TelephonyAction> actions = new List<TelephonyAction>();

// How the primary call handles translation
var primaryCallTranslationOptions = new CallTranslationOptions()
{
    SpeechRecognitionOptions = new SpeechRecognitionOptions()
    {
        Language = "en-GB",
        SpeechModelOptions = new SpeechModelOptions(model : "latest_long")
    },
    TTSVoice = "French France Female Polly Lea"
};

// How the secondary call handles translation
var secondaryCallTranslationOptions = new CallTranslationOptions()
{
    SpeechRecognitionOptions = new SpeechRecognitionOptions()
    {
        Language = "fr-FR",
        SpeechModelOptions = new SpeechModelOptions(model : "phone_call", enhanced : true)
    },
    TTSVoice = "English UK Female Polly Amy"
};

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    SecondaryCall = new SecondaryCall()
    {
        CallRecording = true,
        MinutesMaxCallDuration = 60,
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    },
    Translator = new Translator(primaryCallTranslationOptions, secondaryCallTranslationOptions)
    {
        TranscriptionResultsPage = new WebPageRequest("transcriptionResultsPage.aspx"),
        Id = "1234"
    },
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

actions.Add(connectAction);

Make a call with extra SIP headers:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("sip:agent@acompany.com")
{
    CallFrom = "443069999876",
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};
connectAction.AddExtraSIPHeader(new SIPHeader("X-CallerAccountInfo", "abc-123456789"));
connectAction.AddExtraSIPHeader(new SIPHeader("X-CallReason", "new loan request"));

actions.Add(connectAction);

public class Connect : TelephonyAction
{
    // Constructors
    public Connect(string destination);

    // Members
    public void AddDestination(string destination);
    public string CallFrom;
    public Play HoldMedia;
    public bool PassEarlyMedia;
    public int SecondsAnswerTimeout;
    public void EnableCalleeClassification();
    public void EnableCalleeClassification(ClassifyCallee classifyCallee);
    public SecondaryCall SecondaryCall;
    public Translator Translator;
    public void AddExtraSIPHeader(SIPHeader header);
    public WebPageRequest NextPage;
}

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};
actions.Add(connectAction);

Once the connect action has finished the duration for which the two calls were connected is specified in the request to the next page:

// Unpack the request
var telephonyRequest = new TelephonyRequest(Request);

var connectResult = (ConnectResult)telephonyRequest.InstanceInfo.ActionResult;
double connectedDuration = connectResult.SecondsConnectedDuration;

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    HoldMedia = Play.PlayFile("welcome.wav"),
    SecondsAnswerTimeout = 20,
    SecondaryCall = new SecondaryCall(null, 60, true),
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

var classifyCallee = new ClassifyCallee(3000, false);
classifyCallee.ConfigureAnsweringMachineReadyToRecord(new AnsweringMachineReadyToRecord(180, 1000, 4000, 10));
connectAction.EnableCalleeClassification(classifyCallee);

connectAction.AddDestination("443069990124");

actions.Add(connectAction);

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    HoldMedia = Play.PlayFile("welcome.wav"),
    SecondsAnswerTimeout = 20,

    SecondaryCall = new SecondaryCall(new WebPageRequest("ConnectFirstPage.aspx"), 60, true)
    {
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    }
};
connectAction.AddDestination("443069990124");

actions.Add(connectAction);

Make a call, passing any early media from the secondary call to the primary call:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    PassEarlyMedia = true,
    SecondaryCall = new SecondaryCall()
    {
        CallRecording = true,
        MinutesMaxCallDuration = 60,
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    },
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

actions.Add(connectAction);

Make a call with a translator:

List<TelephonyAction> actions = new List<TelephonyAction>();

// How the primary call handles translation
var primaryCallTranslationOptions = new CallTranslationOptions()
{
    SpeechRecognitionOptions = new SpeechRecognitionOptions()
    {
        Language = "en-GB",
        SpeechModelOptions = new SpeechModelOptions(model : "latest_long")
    },
    TTSVoice = "French France Female Polly Lea"
};

// How the secondary call handles translation
var secondaryCallTranslationOptions = new CallTranslationOptions()
{
    SpeechRecognitionOptions = new SpeechRecognitionOptions()
    {
        Language = "fr-FR",
        SpeechModelOptions = new SpeechModelOptions(model : "phone_call", enhanced : true)
    },
    TTSVoice = "English UK Female Polly Amy"
};

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    SecondaryCall = new SecondaryCall()
    {
        CallRecording = true,
        MinutesMaxCallDuration = 60,
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    },
    Translator = new Translator(primaryCallTranslationOptions, secondaryCallTranslationOptions)
    {
        TranscriptionResultsPage = new WebPageRequest("transcriptionResultsPage.aspx"),
        Id = "1234"
    },
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

actions.Add(connectAction);

Make a call with extra SIP headers:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("sip:agent@acompany.com")
{
    CallFrom = "443069999876",
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};
connectAction.AddExtraSIPHeader(new SIPHeader("X-CallerAccountInfo", "abc-123456789"));
connectAction.AddExtraSIPHeader(new SIPHeader("X-CallReason", "new loan request"));

actions.Add(connectAction);

public class Connect : TelephonyAction
{
    // Constructors
    public Connect(string destination);

    // Members
    public void AddDestination(string destination);
    public string CallFrom;
    public Play HoldMedia;
    public bool PassEarlyMedia;
    public int SecondsAnswerTimeout;
    public void EnableCalleeClassification();
    public void EnableCalleeClassification(ClassifyCallee classifyCallee);
    public SecondaryCall SecondaryCall;
    public Translator Translator;
    public void AddExtraSIPHeader(SIPHeader header);
    public WebPageRequest NextPage;
}

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};
actions.Add(connectAction);

Once the connect action has finished the duration for which the two calls were connected is specified in the request to the next page:

// Unpack the request
var telephonyRequest = await TelephonyRequest.UnpackRequestAsync(Request);

var connectResult = (ConnectResult)telephonyRequest.InstanceInfo.ActionResult;
double connectedDuration = connectResult.SecondsConnectedDuration;

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    HoldMedia = Play.PlayFile("welcome.wav"),
    SecondsAnswerTimeout = 20,
    SecondaryCall = new SecondaryCall(null, 60, true),
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

var classifyCallee = new ClassifyCallee(3000, false);
classifyCallee.ConfigureAnsweringMachineReadyToRecord(new AnsweringMachineReadyToRecord(180, 1000, 4000, 10));
connectAction.EnableCalleeClassification(classifyCallee);

connectAction.AddDestination("443069990124");

actions.Add(connectAction);

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    HoldMedia = Play.PlayFile("welcome.wav"),
    SecondsAnswerTimeout = 20,

    SecondaryCall = new SecondaryCall(new WebPageRequest("ConnectFirstPage.aspx"), 60, true)
    {
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    }
};
connectAction.AddDestination("443069990124");

actions.Add(connectAction);

Make a call, passing any early media from the secondary call to the primary call:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    PassEarlyMedia = true,
    SecondaryCall = new SecondaryCall()
    {
        CallRecording = true,
        MinutesMaxCallDuration = 60,
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    },
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

actions.Add(connectAction);

Make a call with a translator:

List<TelephonyAction> actions = new List<TelephonyAction>();

// How the primary call handles translation
var primaryCallTranslationOptions = new CallTranslationOptions()
{
    SpeechRecognitionOptions = new SpeechRecognitionOptions()
    {
        Language = "en-GB",
        SpeechModelOptions = new SpeechModelOptions(model : "latest_long")
    },
    TTSVoice = "French France Female Polly Lea"
};

// How the secondary call handles translation
var secondaryCallTranslationOptions = new CallTranslationOptions()
{
    SpeechRecognitionOptions = new SpeechRecognitionOptions()
    {
        Language = "fr-FR",
        SpeechModelOptions = new SpeechModelOptions(model : "phone_call", enhanced : true)
    },
    TTSVoice = "English UK Female Polly Amy"
};

var connectAction = new Connect("443069990123")
{
    CallFrom = "443069999876",
    SecondaryCall = new SecondaryCall()
    {
        CallRecording = true,
        MinutesMaxCallDuration = 60,
        FinalPage = new WebPageRequest("ConnectFinalPage.aspx"),
        ErrorPage = new WebPageRequest("ConnectErrorPage.aspx")
    },
    Translator = new Translator(primaryCallTranslationOptions, secondaryCallTranslationOptions)
    {
        TranscriptionResultsPage = new WebPageRequest("transcriptionResultsPage.aspx"),
        Id = "1234"
    },
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};

actions.Add(connectAction);

Make a call with extra SIP headers:

List<TelephonyAction> actions = new List<TelephonyAction>();

var connectAction = new Connect("sip:agent@acompany.com")
{
    CallFrom = "443069999876",
NextPage = new WebPageRequest("ConnectNextPage.aspx")
};
connectAction.AddExtraSIPHeader(new SIPHeader("X-CallerAccountInfo", "abc-123456789"));
connectAction.AddExtraSIPHeader(new SIPHeader("X-CallReason", "new loan request"));

actions.Add(connectAction);

Connect Class

Namespace: Aculab.Cloud.RestAPIWrapper

Assembly: Aculab.Cloud.RestAPIWrapper.dll

An action to connect an existing inbound or outbound (primary) call to a new (secondary) call destination.

.Net Framework.Net Standard

Public Class Connect
    Inherits TelephonyAction

    ' Constructors
    Public Sub New (destination As String)

    ' Members
    Public Function AddDestination(destination As String) As Void
    Public Property CallFrom As String
    Public Property HoldMedia As Play
    Public Property PassEarlyMedia As Bool
    Public Property SecondsAnswerTimeout As Integer
    Public Function EnableCalleeClassification() As Void
    Public Function EnableCalleeClassification(classifyCallee As Classifycallee) As Void
    Public Property SecondaryCall As Secondarycall
    Public Property Translator As Translator
    Public Function AddExtraSIPHeader(header As Sipheader) As Void
    Public Property NextPage As Webpagerequest
End Class

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

actions.Add(connectAction)

Once the connect action has finished the duration for which the two calls were connected Is specified in the request to the next page.

' Unpack the request
Dim telephonyRequest = New TelephonyRequest(Request)

Dim connectResult As ConnectResult = telephonyRequest.InstanceInfo.ActionResult
Dim connectedDuration = connectResult.SecondsConnectedDuration

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .HoldMedia = Play.PlayFile("welcome.wav"),
    .SecondsAnswerTimeout = 20,
    .SecondaryCall = New SecondaryCall(Nothing, 60, True),
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

connectAction.AddDestination("443069990124")

Dim classifyCallee = New ClassifyCallee(3000, False)
classifyCallee.ConfigureAnsweringMachineReadyToRecord(New AnsweringMachineReadyToRecord(180, 1000, 4000, 10))
connectAction.EnableCalleeClassification(classifyCallee)

actions.Add(connectAction)

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .HoldMedia = Play.PlayFile("welcome.wav"),
    .SecondsAnswerTimeout = 20,
    .SecondaryCall = New SecondaryCall(New WebPageRequest("ConnectFirstPage.aspx"), 60, True) With {
        .FinalPage = New WebPageRequest("ConnectFinalPage.aspx"),
        .ErrorPage = New WebPageRequest("ConnectErrorPage.aspx")
    }
}

connectAction.AddDestination("443069990124")

actions.Add(connectAction)

Make a call, passing any early media from the secondary call to the primary call:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .PassEarlyMedia = True,
    .SecondaryCall = New SecondaryCall With {
        .CallRecording = True,
        .MinutesMaxCallDuration = 60,
        .FinalPage = New WebPageRequest("ConnectFinalPage.aspx"),
        .ErrorPage = New WebPageRequest("ConnectErrorPage.aspx")
    },
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

actions.Add(connectAction)

Make a call with a translator:

Dim actions = New List(Of TelephonyAction)

' How the primary call handles translation
Dim primaryCallTranslationOptions = New CallTranslationOptions With {
    .SpeechRecognitionOptions = New SpeechRecognitionOptions() With {
        .Language = "en-GB",
        .SpeechModelOptions = New SpeechModelOptions(model:="latest_long")
    },
    .TTSVoice = "French France Female Polly Lea"
}

' How the secondary call handles translation
Dim secondaryCallTranslationOptions = New CallTranslationOptions() With {
    .SpeechRecognitionOptions = New SpeechRecognitionOptions() With {
        .Language = "fr-FR",
        .SpeechModelOptions = New SpeechModelOptions(model:="phone_call", enhanced:=True)
    },
    .TTSVoice = "English UK Female Polly Amy"
}

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .SecondaryCall = New SecondaryCall() With {
        .CallRecording = True,
        .MinutesMaxCallDuration = 60,
        .FinalPage = New WebPageRequest("ConnectFinalPage.aspx"),
        .ErrorPage = New WebPageRequest("ConnectErrorPage.aspx")
    },
    .Translator = New Translator(primaryCallTranslationOptions, secondaryCallTranslationOptions) With {
        .TranscriptionResultsPage = New WebPageRequest("transcriptionResultsPage.aspx"),
        .Id = "1234"
    },
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

actions.Add(connectAction)

Make a call with extra SIP headers:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("sip:agent@acompany.com") With {
    .CallFrom = "443069999876",
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

connectAction.AddExtraSIPHeader(New SIPHeader("X-CallerAccountInfo", "abc-123456789"))
connectAction.AddExtraSIPHeader(New SIPHeader("X-CallReason", "new loan request"))

actions.Add(connectAction)

Public Class Connect
    Inherits TelephonyAction

    ' Constructors
    Public Sub New (destination As String)

    ' Members
    Public Function AddDestination(destination As String) As Void
    Public Property CallFrom As String
    Public Property HoldMedia As Play
    Public Property PassEarlyMedia As Bool
    Public Property SecondsAnswerTimeout As Integer
    Public Function EnableCalleeClassification() As Void
    Public Function EnableCalleeClassification(classifyCallee As Classifycallee) As Void
    Public Property SecondaryCall As Secondarycall
    Public Property Translator As Translator
    Public Function AddExtraSIPHeader(header As Sipheader) As Void
    Public Property NextPage As Webpagerequest
End Class

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

actions.Add(connectAction)

Once the connect action has finished the duration for which the two calls were connected Is specified in the request to the next page.

' Unpack the request
Dim telephonyRequest = New TelephonyRequest(Request)

Dim connectResult As ConnectResult = telephonyRequest.InstanceInfo.ActionResult
Dim connectedDuration = connectResult.SecondsConnectedDuration

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .HoldMedia = Play.PlayFile("welcome.wav"),
    .SecondsAnswerTimeout = 20,
    .SecondaryCall = New SecondaryCall(Nothing, 60, True),
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

connectAction.AddDestination("443069990124")

Dim classifyCallee = New ClassifyCallee(3000, False)
classifyCallee.ConfigureAnsweringMachineReadyToRecord(New AnsweringMachineReadyToRecord(180, 1000, 4000, 10))
connectAction.EnableCalleeClassification(classifyCallee)

actions.Add(connectAction)

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .HoldMedia = Play.PlayFile("welcome.wav"),
    .SecondsAnswerTimeout = 20,
    .SecondaryCall = New SecondaryCall(New WebPageRequest("ConnectFirstPage.aspx"), 60, True) With {
        .FinalPage = New WebPageRequest("ConnectFinalPage.aspx"),
        .ErrorPage = New WebPageRequest("ConnectErrorPage.aspx")
    }
}

connectAction.AddDestination("443069990124")

actions.Add(connectAction)

Make a call, passing any early media from the secondary call to the primary call:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .PassEarlyMedia = True,
    .SecondaryCall = New SecondaryCall With {
        .CallRecording = True,
        .MinutesMaxCallDuration = 60,
        .FinalPage = New WebPageRequest("ConnectFinalPage.aspx"),
        .ErrorPage = New WebPageRequest("ConnectErrorPage.aspx")
    },
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

actions.Add(connectAction)

Make a call with a translator:

Dim actions = New List(Of TelephonyAction)

' How the primary call handles translation
Dim primaryCallTranslationOptions = New CallTranslationOptions With {
    .SpeechRecognitionOptions = New SpeechRecognitionOptions() With {
        .Language = "en-GB",
        .SpeechModelOptions = New SpeechModelOptions(model:="latest_long")
    },
    .TTSVoice = "French France Female Polly Lea"
}

' How the secondary call handles translation
Dim secondaryCallTranslationOptions = New CallTranslationOptions() With {
    .SpeechRecognitionOptions = New SpeechRecognitionOptions() With {
        .Language = "fr-FR",
        .SpeechModelOptions = New SpeechModelOptions(model:="phone_call", enhanced:=True)
    },
    .TTSVoice = "English UK Female Polly Amy"
}

Dim connectAction = New Connect("443069990123") With {
    .CallFrom = "443069999876",
    .SecondaryCall = New SecondaryCall() With {
        .CallRecording = True,
        .MinutesMaxCallDuration = 60,
        .FinalPage = New WebPageRequest("ConnectFinalPage.aspx"),
        .ErrorPage = New WebPageRequest("ConnectErrorPage.aspx")
    },
    .Translator = New Translator(primaryCallTranslationOptions, secondaryCallTranslationOptions) With {
        .TranscriptionResultsPage = New WebPageRequest("transcriptionResultsPage.aspx"),
        .Id = "1234"
    },
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

actions.Add(connectAction)

Make a call with extra SIP headers:

Dim actions = New List(Of TelephonyAction)

Dim connectAction = New Connect("sip:agent@acompany.com") With {
    .CallFrom = "443069999876",
.NextPage = New WebPageRequest("ConnectNextPage.aspx")
}

connectAction.AddExtraSIPHeader(New SIPHeader("X-CallerAccountInfo", "abc-123456789"))
connectAction.AddExtraSIPHeader(New SIPHeader("X-CallReason", "new loan request"))

actions.Add(connectAction)

class Connect extends TelephonyAction

Represents a connect action.

Class synopsis:

// Constructors:
public Connect(String destination)

// Members:
public void addDestination(String destination)
public void setCallFrom(String callFrom)
public void setHoldMedia(Play holdMedia)
public void setPassEarlyMedia(boolean enabled)
public void setSecondsAnswerTimeout(int secondsTimeout)
public void enableCalleeClassification()
public void enableCalleeClassification(ClassifyCallee classifyCallee)
public void setSecondaryCall(SecondaryCall secondaryCall)
public void setTranslator(Translator translator)
public void setNextPage(WebPageRequest nextPage)
public void addExtraSIPHeader(SIPHeader sipHeader)
public JSONObject toJSONObject()

class ConnectResult extends ActionResult

Represents the result of a connect action.

Class synopsis:

// Members:
public double getSecondsConnectedDuration()

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

List<TelephonyAction> actions = new ArrayList<TelephonyAction>();

Connect connectAction = new Connect("443069990123");
connectAction.setCallFrom("443069999876");
connectAction.setNextPage(new WebPageRequest("connectNextPage"));

actions.add(connectAction);

Obtain the duration for which the two calls were connected from the action's next page request:

ConnectResult connectResult = (ConnectResult)ourRequest.getInstanceInfo().getActionResult();
double connectedDuration = connectResult.getSecondsConnectedDuration();

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

List<TelephonyAction> actions = new ArrayList<TelephonyAction>();

SecondaryCall secCall = new SecondaryCall();
secCall.setCallRecording(true);
secCall.setMinutesMaxCallDuration(60);

AnsweringMachineReadyToRecord answeringMachineOptions = new AnsweringMachineReadyToRecord();
answeringMachineOptions.setMillisecondsMinBeepDuration(180);
answeringMachineOptions.setMillisecondsPostBeepSilence(1000);
answeringMachineOptions.setMillisecondsNoBeepSilence(4000);
answeringMachineOptions.setSecondsMaxMessageDuration(10);

ClassifyCallee classifyCalleeOptions = new ClassifyCallee();
classifyCalleeOptions.setEnable(true);
classifyCalleeOptions.setMillisecondsTimeout(3000);
classifyCalleeOptions.setHangUpOnAnsweringMachine(false);
classifyCalleeOptions.setHangUpOnFaxMachine(true);
classifyCalleeOptions.setAnsweringMachineReadyToRecord(answeringMachineOptions);

Connect connectAction = new Connect("443069990123");
connectAction.addDestination("443069990124");
connectAction.setCallFrom("443069999876");
connectAction.setHoldMedia(Play.playFile("welcome.wav"));
connectAction.setSecondsAnswerTimeout(20);
connectAction.setSecondaryCall(secCall);
connectAction.enableCalleeClassification(classifyCalleeOptions);
connectAction.setNextPage(new WebPageRequest("connectNextPage"));

actions.add(connectAction);

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

List<TelephonyAction> actions = new ArrayList<TelephonyAction>();

SecondaryCall secondaryCall  = new SecondaryCall(new WebPageRequest("connectFirstPage"), 60, true);
secondaryCall.setFinalPage(new WebPageRequest("connectFinalPage"));
secondaryCall.setErrorPage(new WebPageRequest("connectErrorPage"));

Connect connectAction = new Connect("443069990123");
connectAction.addDestination("443069990124");
connectAction.setCallFrom("443069999876");
connectAction.setHoldMedia(Play.playFile("welcome.wav"));
connectAction.setSecondsAnswerTimeout(20);
connectAction.setSecondaryCall(secondaryCall);
connectAction.setNextPage(new WebPageRequest("connectNextPage"));

actions.add(connectAction);

Make a call, passing any early media from the secondary call to the primary call:

List<TelephonyAction> actions = new ArrayList<TelephonyAction>();

SecondaryCall secondaryCall  = new SecondaryCall();
secondaryCall.setCallRecording(true);
secondaryCall.setMinutesMaxCallDuration(60);
secondaryCall.setFinalPage(new WebPageRequest("connectFinalPage"));
secondaryCall.setErrorPage(new WebPageRequest("connectErrorPage"));

Connect connectAction = new Connect("443069990123");
connectAction.setCallFrom("443069999876");
connectAction.setPassEarlyMedia(true);

connectAction.setSecondaryCall(secondaryCall);
connectAction.setNextPage(new WebPageRequest("connectNextPage"));

actions.add(connectAction);

Make a call with a translator:

List<TelephonyAction> actions = new ArrayList<TelephonyAction>();

Connect connectAction = new Connect("443069990123");
connectAction.setCallFrom("443069999876");
connectAction.setNextPage(new WebPageRequest("connectNextPage"));

{
    CallTranslationOptions primaryCTO = new CallTranslationOptions();
    CallTranslationOptions secondaryCTO = new CallTranslationOptions();

    {
        SpeechModelOptions speechModelOpts = new SpeechModelOptions();
        speechModelOpts.setModel("latest_long");
        SpeechRecognitionOptions speechRecognitionOpts = new SpeechRecognitionOptions();
        speechRecognitionOpts.setLanguage("en-GB");
        speechRecognitionOpts.setSpeechModelOptions(speechModelOpts);

        primaryCTO.setSpeechRecognitionOptions(speechRecognitionOpts);
        primaryCTO.setTTSVoice("French France Female Polly Lea");
    }

    {
        SpeechModelOptions speechModelOpts = new SpeechModelOptions();
        speechModelOpts.setModel("phone_call");
        speechModelOpts.setEnhanced(true);
        SpeechRecognitionOptions speechRecognitionOpts = new SpeechRecognitionOptions();
        speechRecognitionOpts.setLanguage("fr-FR");
        speechRecognitionOpts.setSpeechModelOptions(speechModelOpts);

        secondaryCTO.setSpeechRecognitionOptions(speechRecognitionOpts);
        secondaryCTO.setTTSVoice("English UK Female Polly Amy");
    }

    WebPageRequest transcriptionResultsPage = new WebPageRequest("transcription_results_page");

    Translator translator = new Translator(primaryCTO, secondaryCTO);
    translator.setTranscriptionResultsPage(transcriptionResultsPage);
    translator.setID("1234");

    connectAction.setTranslator(translator);
}

actions.add(connectAction);

Make a call with with extra SIP headers:

List<TelephonyAction> actions = new ArrayList<TelephonyAction>();

Connect connectAction = new Connect("sip:agent@acompany.com");
connectAction.setCallFrom("443069999876");
connectAction.setNextPage(new WebPageRequest("connectNextPage"));
connectAction.addExtraSIPHeader(new SIPHeader("X-CallerAccountInfo", "abc-123456789"));
connectAction.addExtraSIPHeader(new SIPHeader("X-CallReason", "new loan request"));

actions.add(connectAction);

class Connect

Represents a connect action.

Class synopsis:

# Connect object:
Connect()

# Instance methods:
Connect.set_destinations(destinations)
Connect.append_destination(destination)
Connect.set_call_from(call_from)
Connect.set_hold_media(play_action)
Connect.set_pass_early_media(pass_early_media=True)
Connect.set_seconds_answer_timeout(seconds_answer_timeout)
Connect.set_classify_callee(classify_callee)
Connect.set_secondary_call(secondary_call)
Connect.set_translator(translator)
Connect.set_next_page(next_page)
Connect.add_extra_sip_header(name, value)

Connect Result

The Connect Result is represented by a dictionary. It is found within the action result for the next page.

Obtaining the Connect Result dictionary:

my_request = TelephonyRequest(request)
action_result = my_request.get_action_result()
if action_result.get("action") == "connect":
    connect_result =  action_result.get("result")

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call:

# Create a list of actions that will be passed to the TelephonyResponse constructor
list_of_actions = []

connect_action = Connect()
connect_action.set_destinations(['441908273800'])
connect_action.set_call_from('441908273801')
connect_action.set_next_page(WebPage(url='connectNextPage'))

list_of_actions.append(connect_action)

Obtain the duration for which the two calls were connected from the action's next page request:

my_request = TelephonyRequest(request)
action_result = my_request.get_action_result()

if action_result.get("action") == "connect":

    connect_result =  action_result.get("result")
    duration = connect_result.get("seconds_connected_duration")

    # Your code here...

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine:

# Create a list of actions that will be passed to the TelephonyResponse constructor
list_of_actions = []

answering_machine_options = AnsweringMachineReadyToRecord(milliseconds_min_beep_duration=180,
                                                          milliseconds_post_beep_silence=1000,
                                                          milliseconds_no_beep_silence=4000,
                                                          seconds_max_message_duration=10)
classify_callee = ClassifyCallee(enable=True,
                                 live_speaker_detection_mode='default',
                                 hang_up_on_answering_machine=False,
                                 hang_up_on_fax_machine=True,
                                 answering_machine_ready_to_record=answering_machine_options)

connect_action = Connect()
connect_action.set_destinations(['441908273800','441908273802'])
connect_action.set_call_from('441908273801')
connect_action.set_hold_media(Play(file_to_play='welcome.wav'))
connect_action.set_seconds_answer_timeout(30)
connect_action.set_secondary_call(SecondaryCall(minutes_max_call_duration=240, call_recording=True))
connect_action.set_classify_callee(classify_callee)
connect_action.set_next_page(WebPage(url='connectNextPage'))

list_of_actions.append(connect_action)

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up:

# Create a list of actions that will be passed to the TelephonyResponse constructor
list_of_actions = []

connect_action = Connect()
connect_action.append_destination('441908273800')
connect_action.append_destination('441908273802')
connect_action.set_call_from('441908273801')
connect_action.set_hold_media(Play(file_to_play='welcome.wav'))
connect_action.set_seconds_answer_timeout(30)
connect_action.set_secondary_call(SecondaryCall(first_page=WebPage(url='connectFirstPage'),
                                               final_page=WebPage(url='connectFinalPage'),
                                               error_page=WebPage(url='connectErrorPage'),
                                               minutes_max_call_duration=240,
                                               call_recording=True))
connect_action.set_next_page(WebPage(url='connectNextPage'))

list_of_actions.append(connect_action)

Make a call, passing any early media from the secondary call to the primary call:

# Create a list of actions that will be passed to the TelephonyResponse constructor
list_of_actions = []

connect_action = Connect()
connect_action.append_destination('441908273800')
connect_action.set_call_from('441908273801')
connect_action.set_pass_early_media()
connect_action.set_secondary_call(SecondaryCall(final_page=WebPage(url='connectFinalPage'),
                                                error_page=WebPage(url='connectErrorPage'),
                                                minutes_max_call_duration=240,
                                                call_recording=True))
connect_action.set_next_page(WebPage(url='connectNextPage'))

list_of_actions.append(connect_action)

Make a call with a translator:

# Create a list of actions that will be passed to the TelephonyResponse constructor
list_of_actions = []

connect_action = Connect()
connect_action.set_destinations(['441908273800'])
connect_action.set_call_from('441908273801')
connect_action.set_next_page(WebPage(url='connectNextPage'))

primarySMO = SpeechModelOptions()
primarySMO.set_model("latest_long")
primarySRO = SpeechRecognitionOptions()
primarySRO.set_language("en-GB")
primarySRO.set_speech_model_options(primarySMO)
primaryCTO = CallTranslationOptions()
primaryCTO.set_speech_recognition_options(primarySRO)
primaryCTO.set_tts_voice("French France Female Polly Lea")

secondarySMO = SpeechModelOptions()
secondarySMO.set_model("phone_call")
secondarySMO.set_enhanced(True)
secondarySRO = SpeechRecognitionOptions()
secondarySRO.set_language("fr-FR")
secondarySRO.set_speech_model_options(secondarySMO)
secondaryCTO = CallTranslationOptions()
secondaryCTO.set_speech_recognition_options(secondarySRO)
secondaryCTO.set_tts_voice("English UK Female Polly Amy")

translator = Translator(primaryCTO, secondaryCTO)
translator.set_transcription_results_page(WebPage(url='transcription_results_page'))
translator.set_id("1234")

connect_action.set_translator(translator);

list_of_actions.append(connect_action)

Make a call with with extra SIP headers:

# Create a list of actions that will be passed to the TelephonyResponse constructor
list_of_actions = []

connect_action = Connect()
connect_action.set_destinations(['sip:agent@acompany.com'])
connect_action.set_call_from('443069999876')
connect_action.add_extra_sip_header("X-CallerAccountInfo", "abc-123456789")
connect_action.add_extra_sip_header("X-CallReason", "new loan request")
connect_action.set_next_page(WebPage(url='connectNextPage'))

list_of_actions.append(connect_action)

The Connect class

Introduction

Represents a connect action.

Class synopsis

class Connect extends ConnectBase {

    /* methods */
    public __construct()
    public self addDestination(string $dest)
    public self setCallFrom(string $from)
    public self setClassifyCallee(ClassifyCalleeConfiguration $classify = null)
    public self setPassEarlyMedia(boolean $enabled)
    public self setTranslator(Translator $translator = null)
    public self addExtraSIPHeader(string $name, string $value)

    /* inherited methods */
    public self setHoldMedia(Play $play = null)
    public self setSecondsAnswerTimeout(int $secs)
    public self setSecondaryCallConfiguration(SecondaryCallConfiguration $secondary_call_configuration)
    public self setNextPage(string|WebPageRequest $next_page, string $method = null)
}

The ConnectResult class

Introduction

Represents the result of a connect action.

Class synopsis

class ConnectResult extends ActionResult {

    /* methods */
    public float getSecondsConnectedDuration()

    /* inherited methods */
    public string getAction()
    public boolean getInterrupted()
}

Examples:

Example 1Example 2Example 3Example 4Example 5Example 6

Make a call to a single destination, without classifying the callee, and connect it to the existing call

$connect = new Aculab\TelephonyRestAPI\Connect();
$connect->addDestination('443069990123');
$connect->setCallFrom('443069999876');
$connect->setNextPage('connectNextPage');

$response->addAction($connect);

Obtain the duration for which the two calls were connected from the action's next page request:

$info = InstanceInfo::getInstanceInfo();
$connectResult = $info->getActionResult();
$durationConnected = $connectResult->getSecondsConnectedDuration();

Connect one of two calls, classifying the callee. If it is an answering machine wait for the message to finish but hang up if it's a fax machine

$connect = new Aculab\TelephonyRestAPI\Connect();
$connect->addDestination('443069990123');
$connect->addDestination('443069990124');
$connect->setCallFrom('443069999876');
$connect->setHoldMedia(Aculab\TelephonyRestAPI\Play::playFile('welcome.wav'));
$connect->setSecondsAnswerTimeout(20);
$connect->setNextPage('connectNextPage');

$call_config = new Aculab\TelephonyRestAPI\SecondaryCallConfiguration();
$call_config->setMinutesMaxCallDuration(60);
$call_config->setCallRecording(true);
$connect->setSecondaryCallConfiguration($call_config);

$classify_configuration = new Aculab\TelephonyRestAPI\ClassifyCalleeConfiguration();
$classify_configuration->setMillisecondsTimeout(3000);
$classify_configuration->setHangupOnAnsweringMachine(false);
$classify_configuration->setAnsweringMachineReadyToRecordConfiguration(180, 1000, 4000, 10);
$connect->setClassifyCallee($classify_configuration);

$response->addAction($connect);

Make two calls, requesting connectFirstPage when the first of the two calls is answered. Connect this call once all connectFirstPage's actions have run. Request connectFinalPage then connectNextPage once the connected call hangs up

$connect = new Aculab\TelephonyRestAPI\Connect();
$connect->addDestination('443069990123');
$connect->addDestination('443069990124');
$connect->setCallFrom('443069999876');
$connect->setHoldMedia(Aculab\TelephonyRestAPI\Play::playFile('welcome.wav'));
$connect->setSecondsAnswerTimeout(20);
$connect->setNextPage('connectNextPage');

$call_config = new Aculab\TelephonyRestAPI\SecondaryCallConfiguration();
$call_config->setMinutesMaxCallDuration(60);
$call_config->setCallRecording(true);
$call_config->setFirstPage('connectFirstPage');
$call_config->setErrorPage('connectErrorPage');
$call_config->setFinalPage('connectFinalPage');
$connect->setSecondaryCallConfiguration($call_config);

$response->addAction($connect);

Make a call, passing any early media from the secondary call to the primary call

$connect = new Aculab\TelephonyRestAPI\Connect();
$connect->addDestination('443069990123');
$connect->setCallFrom('443069999876');
$connect->setPassEarlyMedia(true);
$connect->setNextPage('connectNextPage');

$call_config = new Aculab\TelephonyRestAPI\SecondaryCallConfiguration();
$call_config->setMinutesMaxCallDuration(60);
$call_config->setCallRecording(true);
$call_config->setErrorPage('connectErrorPage');
$call_config->setFinalPage('connectFinalPage');
$connect->setSecondaryCallConfiguration($call_config);

$response->addAction($connect);

Make a call with a translator

$connect = new Aculab\TelephonyRestAPI\Connect();
$connect->addDestination('443069990123');
$connect->setCallFrom('443069999876');
$connect->setNextPage('connectNextPage');

$translator = new Aculab\TelephonyRestAPI\Translator();

$primary = new Aculab\TelephonyRestAPI\CallTranslationOptions();
$speech_model_options = new \Aculab\TelephonyRestAPI\SpeechModelOptions();
$speech_model_options->setModel("latest_long");
$speech_recognition_options = new \Aculab\TelephonyRestAPI\SpeechRecognitionOptions();
$speech_recognition_options->setLanguage("en-GB");
$speech_recognition_options->setSpeechModelOptions($speech_model_options);
$primary->setSpeechRecognitionOptions($speech_recognition_options);
$primary->setTTSVoice("French France Female Polly Lea");

$secondary = new Aculab\TelephonyRestAPI\CallTranslationOptions();
$speech_model_options = new \Aculab\TelephonyRestAPI\SpeechModelOptions();
$speech_model_options->setModel("phone_call")
    ->setEnhanced(true);
$speech_recognition_options = new \Aculab\TelephonyRestAPI\SpeechRecognitionOptions();
$speech_recognition_options->setLanguage("fr-FR");
$speech_recognition_options->setSpeechModelOptions($speech_model_options);
$secondary->setSpeechRecognitionOptions($speech_recognition_options);
$secondary->setTTSVoice("English UK Female Polly Amy");

$translator->setPrimaryCallTranslationOptions($primary)
    ->setSecondaryCallTranslationOptions($secondary)
    ->setTranscriptionResultsPage("transcriptionResultsPage")
    ->setID("1234");

$connect->setTranslator($translator);

$response->addAction($connect);

Make a call with with extra SIP headers

$connect = new Aculab\TelephonyRestAPI\Connect();
$connect->addDestination('sip:agent@acompany.com');
$connect->setCallFrom('443069999876');
$connect->setNextPage('connectNextPage');

$connect->addExtraSIPHeader("X-CallerAccountInfo", "abc-123456789")
    ->addExtraSIPHeader("X-CallReason", "new loan request");

$response->addAction($connect);
